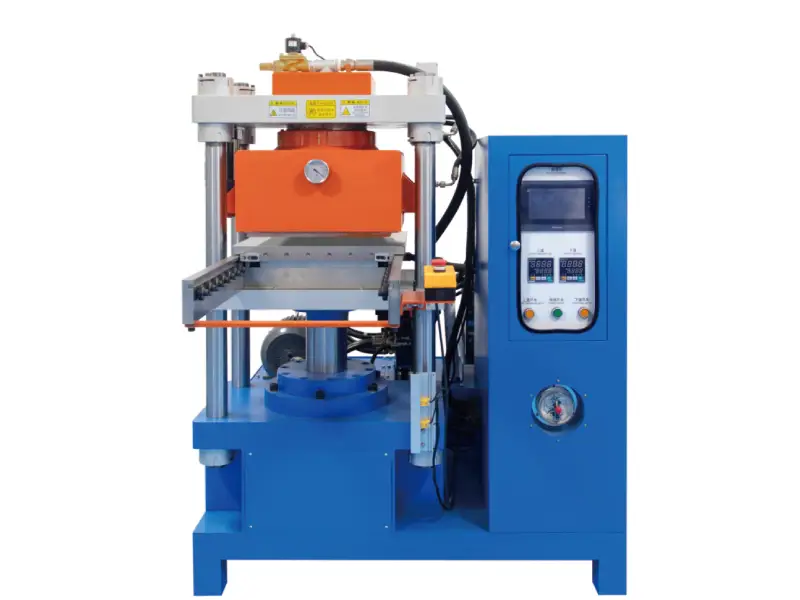

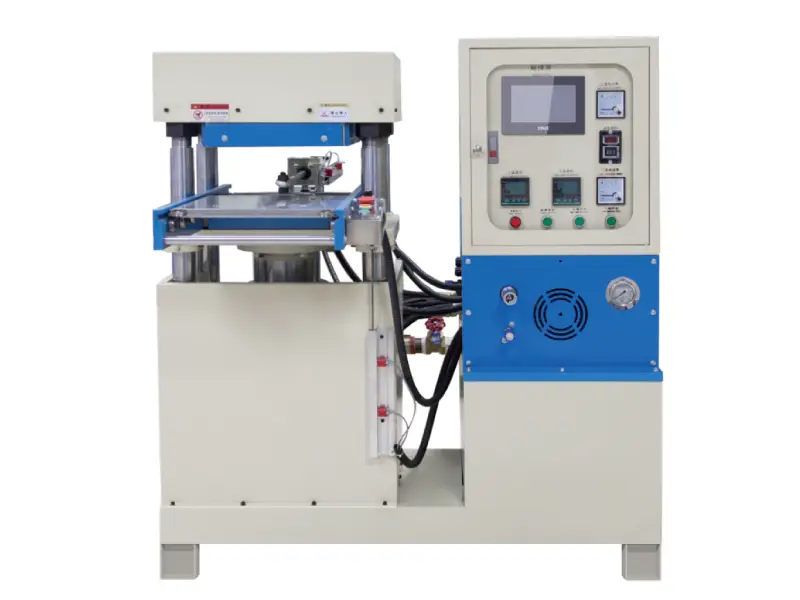

Rubber Vulcanizing Machine Series
Our series of rubber press molding machines is the backbone of high-quality silicone and rubber product manufacturing. From standard hydraulic presses to advanced vacuum-assisted models, we provide the ultimate solution for producing everything from industrial seals to high-end consumer electronics accessories, like silicone phone cases.
Key Features:
Vacuum Air Extraction:
Integrated 3kw vacuum system to prevent bubbles in finished products.
Dual Heating Zones:
Independent control of upper and lower plates for precise vulcanization.
High Pressure Stability:
Constant 50T/70T work pressure for industrial-grade molding.
Adjustable Stroke: 160mm clamping stroke for versatile mold height compatibility.
Production range:
- Consumer Electronics: Smartwatch bands, earbud tips, and silicone protective skins.
Kitchenware: Silicone baking molds, spatulas, and heat-resistant mats.
Automotive: O-rings, oil seals, engine gaskets, and vibration dampeners.
Medical Supplies: Silicone valves, tubing connectors, and orthopedic components.
Beauty & Care: Face cleansing brushes and cosmetic applicators.
Technical datal:
| Heating plate size: | 360 × 350mm |
|---|---|
| Clamping stroke: | 160mm |
| Work pressure: | 50T/70T |
| Input voltage: | 380V/3P/50hz |
| Heating temperature: | 0-350°C |
| Motor Power: | 3.75kw |
| Total power: | 11kw |
| Machine Weight: | 1.15T |
| Dimensions (L*W*H): | 1420 × 1280 × 1420mm |
| Upper heating plate: | 400 × 400mm |
|---|---|
| Lower heating plate: | 470 × 500mm |
| Work pressure: | 50T/70T |
| Input voltage: | 380V/220V/3P/50hz |
| Oil pump motor power: | 3.75KW |
| Vacuum pump motor power: | 3kw |
| Heating power: | 13.2kw |
| Machine Weight: | 1584kg |
| Dimensions (L*W*H): | 1880 × 1200 × 1650mm |
