What is the advantage of our Chocolate dispensing machine?

Our Food grade chocolate dispensing machine can be effectively adapted for chocolate production due to three key technical advantages:

1. Precision Control
  • Temperature-regulated nozzles maintain chocolate at optimal viscosity (35-45°C), preventing premature solidification while ensuring smooth flow.
  • Programmable dispensing volumes (0.1-10 mL) enable consistent shaping for intricate designs like pralines or decorative patterns.
2. Process Automation
  • Automated XYZ-axis movement replicates manual piping techniques with millimeter accuracy, suitable for mass-producing uniform chocolate pieces.
  • Integrated timers synchronize dispensing with conveyor belts, achieving outputs of 500-1,000 units/hour.
3. Material Adaptability
  • Corrosion-resistant stainless steel components comply with food safety standards.
  • Interchangeable nozzles (0.5-5 mm diameter) accommodate dark/milk/white chocolate variants with differing viscosities.

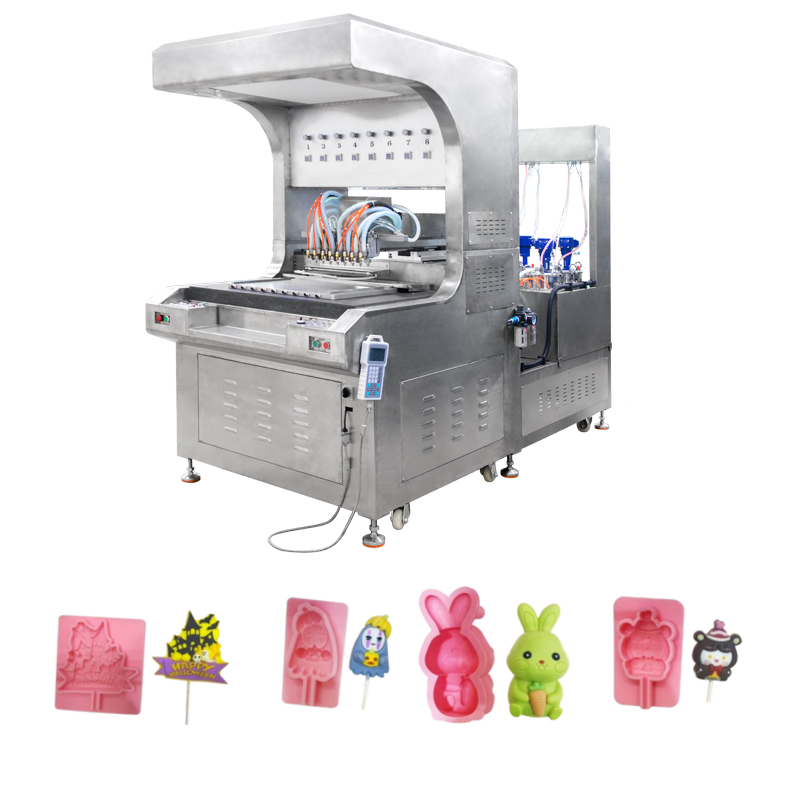

8 colors Chocolate dispensing machine

(hand programming controller)

Working platform dimension600x400mm
Accuracy±0.02 mm
System software versionUI01/M1004
Dispensing nozzle quantity8 PCS
Volume of Stainless Container5 L x 8 PCS
Programing methodHand controller / PC software
Heating MethodWater heating
Chocolate heating rangeWithin 60 C°
Voltage220V/3P/50hz
Machine dimension2405x1300x2100 mm
Machine Net Weight742 KG

Automatic 4 Colors Visual Chocolate dispensing machine

(Automatic Camera identification system)

Working platform dimension400x300mm x2
X,Y,Z axis driveAC 400W servo motor
Maximum Operation Speed1200mm/s
X,Y,Z working distance1000x400x100mm
Dispensing nozzle quantity4 PCS
Volume of Stainless Container5 L x 4 PCS
Dispensing efficiency75000 Dot per hour
Positioning camera1200 Million pixel high precision camera
Maximum heating power5400W
ProgrammingPanoramic visual programming
Machine dimension2180x1560x1980 mm

Able to create super Tiny Size Chocolate design

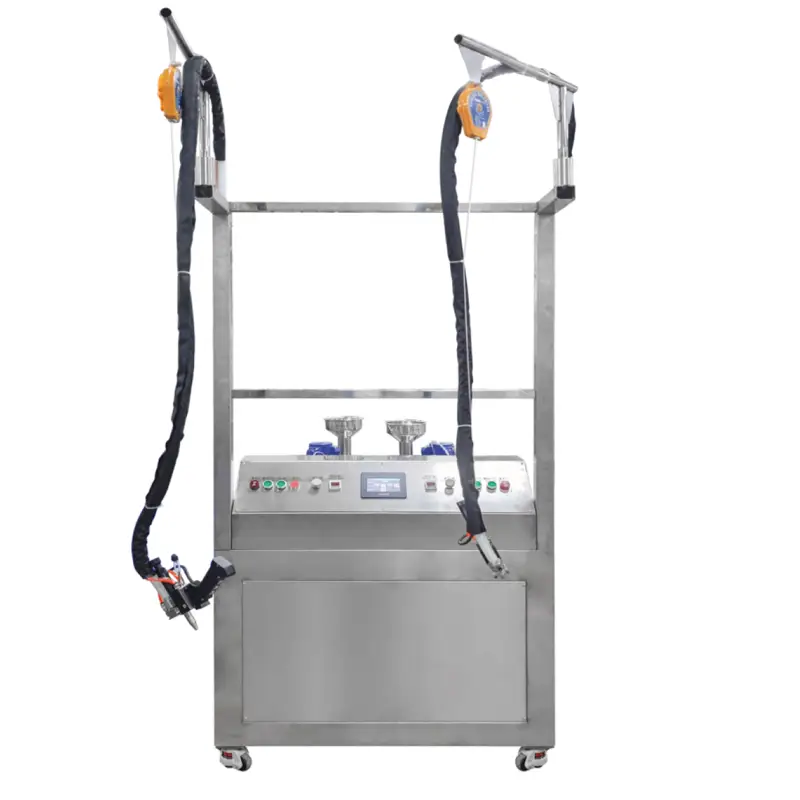

2 Colors Chocolate Dispensing (Manual)

NO. of Dispensing gun2 PCS
Stainless steel container30L x 2 pcs
Heating systemWater heating
Temperature range0-80° C
Working Pressure0.4-0.6 MPA
Weight230kg
Dimension960x1200x2010mm
Voltage220V/3P/50hz
